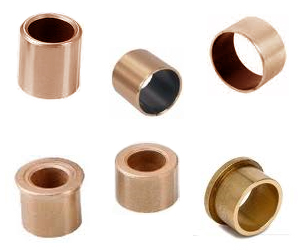

              Sintered Bronze Bushes/ Bushings

Sintered Bronze Bushes/ Bushings   Sintered Bronze Bushes/ Bushings   Sintered Bronze Bushes/ Bushings

Sintered Bronze Bushes/ Bushings

DETAILS OF SINTERED PRODUCTS

Sintered Porous Metal Bearings are Powder metallurgical parts, the starting materials are obviously metal powder. The metal powder used are specifically produced to give flow and compacting characteristics and at the same time ensure best mechanical strength, grade or porosity for oil retention and self lubrication in its finished form.

Forming (or Compacting)SinteringSizingOil Impregnatio

Material : SINTERED BRONZE/ IRON SINTERED (As Per Is : 3980 : 1982)

Range : Plain & Flanged Bushes, Self aligned Bushes, Solid Rod, Plate & different profile components as per drawings / samples.

APPLICATION : Sintered Bronze Bushes are used for High Speed application ( up to 18000 rpm )
Iron Sintered Bushes are used for speed (upto 3000 rpm).

MATERIALS COMPOSITION :

GRADE II, IRON BASE
 ELEMENTS CLASS A % B3 % B2 % B1 %
COPPER (Cu) 1.00 Max 9-11 BAL. 1.5-3.5
CARBON (C) 0.25 Max 0.25 0.25 0.25
IMPURITIES 2.0 2.0 2.0 2.0
IRON (Fe) BAL. BAL. BAL. BAL.


MATERIALS COMPOSITION :

GRADE I, COPPER BASE
ELEMENTS CLASS A % B3 % B2 % B1 %
IRON (Fe) 1.00 Max 48-50 38-40 28-30
Tin (Sn) 8-9.5 4-6 4-6 4-6
CARBON (C) 2.0 Max. 2.0 2.0 2.0
IMPURITIES 2.0 2.0 2.0 2.0
COPPER (Cu) BAL. BAL. BAL. BAL.

Sintered Bronze Bushes, Bronze Bushings, Sintered Bronze Bushings, Sintered Bronze, Sintered Bronze Bearings, Bronze Bearings, Bronze Bushings Catalog, Metric Bronze Bushings, Phosphor Bronze Bushes, Powder Metal, Steel Bushings, Brass Bushings, Thrust Bearing, Oil Impregnated Sintered Bronze, Sintered Metal Filters, Bush Bearing, Ball Bearings, Roller Bearings, Powder Metal Parts, Sinter Metal Related words : Sintered Bronze Bushes, Bronze Bushings, Sintered Bronze Bushings, Sintered Bronze, Sintered Bronze Bearings, Bronze Bearings, Bronze Bushings Catalog, Metric Bronze Bushings, Phosphor Bronze Bushes, Powder Metal, Steel Bushings, Brass Bushings, Thrust Bearing, Oil Impregnated Sintered Bronze, Sintered Metal Filters, Bush Bearing, Ball Bearings, Roller Bearings, Powder Metal Parts, Sinter Metal
Please contact us for all your needs of

Sintered Bronze Bushes/ Bushings

at best prices from India. We are the biggest Indian Manufacturers Exporters of

Sintered Bronze Bushes/ Bushings.


Phosphor Bronze Bushes Bronze Parts Phosphor Bronze Bushes Bronze Parts Aluminium Bronze Bushes Aluminium Bronze Bushes
