Above Material Possesses Good Anti Friction Properties Combined with Plasticity & Suitable for Heavy Loaded applications being applied where Lubrication is doubtful.
CHEMICAL COMPOSITION PERCENTAGE.
ELEMENTS
GRADE I
GRADE II
GRADE III
GRADE IV
Sn
6.0-8.0
10.0 Min
6.5-8.5
9.0-11.0
P
0.30-0.50
0.5 Min
0.5 Min
0.15 Max
Pb
0.25 Max
0.25 Max
2.0-5.0
0.25Max
Zn
0.50 Max
0.05 Max
2.0 Max
0.05 Max
Ni
0.70 Max
0.10 Max
---
---
Impurities
1.2 Max
0.60 Max
1.0 Max
0.25 Max
Cu
REST
REST
REST
REST
BBC Stands guarantee for MATERIAL SPECIFICATION & Products will be Completely free from any types of POROSITY/BLOW HOLES.
Please Furnish Following Details to Submit Our Lowest Offer :
a) Technical Drawing OR Sample
b) Material Specifications, If any
c) Quantity required per Consignment.
Please contact us for all your needs of

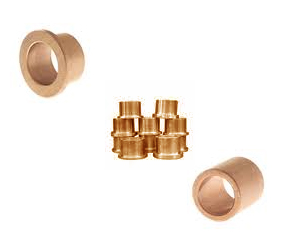

Phosphor Bronze Bushes Bronze Parts
at best prices from India. We are the biggest Indian Manufacturers Exporters of
